Skid-Mounted Automatic Nitrogen Air Separation Unit With CE Certified
Détails sur le produit:
| Lieu d'origine: | CHINE |
| Nom de marque: | KERONG GAS |
| Certification: | ISO9001, CE, ASME |
| Numéro de modèle: | Krn |
Conditions de paiement et expédition:
| Quantité de commande min: | 1 pc |
|---|---|
| Prix: | negotiable |
| Détails d'emballage: | Boîte en bois |
| Délai de livraison: | 8 semaines |
| Conditions de paiement: | L / C, T / T, Western Union, Moneygram |
| Capacité d'approvisionnement: | 1000pcs par an |
|
Détail Infomation |
|||
| Nom: | Unité de séparation de l'azote par l'air | Pureté: | 90% ~ 99,9999% |
|---|---|---|---|
| Point de rosée: | -45 ℃ ou plus | Matériel: | Acier inoxydable ou acier au carbone |
| Capacité: | 5nm3 / h ~ 5500 nm3 / h | Pression: | Réglable |
| Mettre en évidence: | Skid-mounted PSA nitrogen generator,Automatic nitrogen air separation unit,CE certified nitrogen gas generator |
||
Description de produit
| Attribute | Value |
|---|---|
| Name | Nitrogen Air Separation Unit |
| Purity | 90%~99.9999% |
| Dew point | -45℃ or more |
| Material | Stainless steel or carbon steel |
| Capacity | 5Nm3/hr~5500Nm3/hr |
| Pressure | Adjustable |

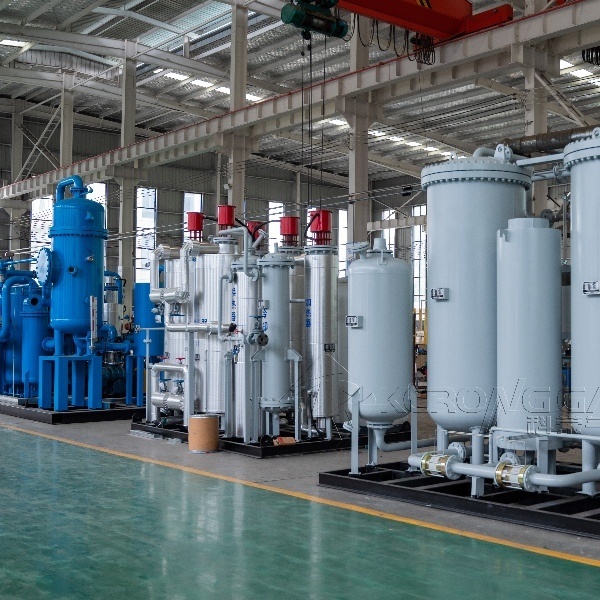

Our Skid-Mounted Automatic Nitrogen Air Separation Unit delivers high-purity nitrogen (up to 99.99%) efficiently and reliably for industrial, medical, and laboratory applications. Housed on a robust skid-mounted frame, the system integrates all essential components—including compressor, dryer, filtration, and control modules—into a pre-assembled, ready-to-operate unit, simplifying transport and installation. Utilizing advanced Pressure Swing Adsorption (PSA) or membrane separation technology, it produces a continuous on-site nitrogen supply with stable purity and pressure. Fully automatic and CE-certified, it ensures safe, compliant operation, energy efficiency, and minimal maintenance, providing a cost-effective, dependable solution for high-demand nitrogen applications.
| Model | Nitrogen flow rate(Nm3/hr) | Purity(%) | Air need(m3/min) | Net dimensions(mm) |
|---|---|---|---|---|
| KRN159 | 7 | 99 | 0.33 | 1200*600*1900 |
| 6 | 99.5 | 0.32 | ||
| KRN219 | 15 | 99 | 0.7 | 1200*600*1900 |
- Online monitoring of oxygen purity, pressure, flow rate and dew point.
- Unqualified oxygen sound and light alarm, long time alarm automatic stop, unqualified automatic oxygen emptying.
- Air dryer and air filters automatic drainer discharge.
- Automatic warning of spare parts replacement.
- Remote control / fully automatic
- Molecular sieve automatic compaction
- Pneumatic valve switching by programmable controller automatic control
- The IPC, DCS, the specific configuration of other specific programs
